View, Convert & Print 200+ engineering size raster and CAD document formats

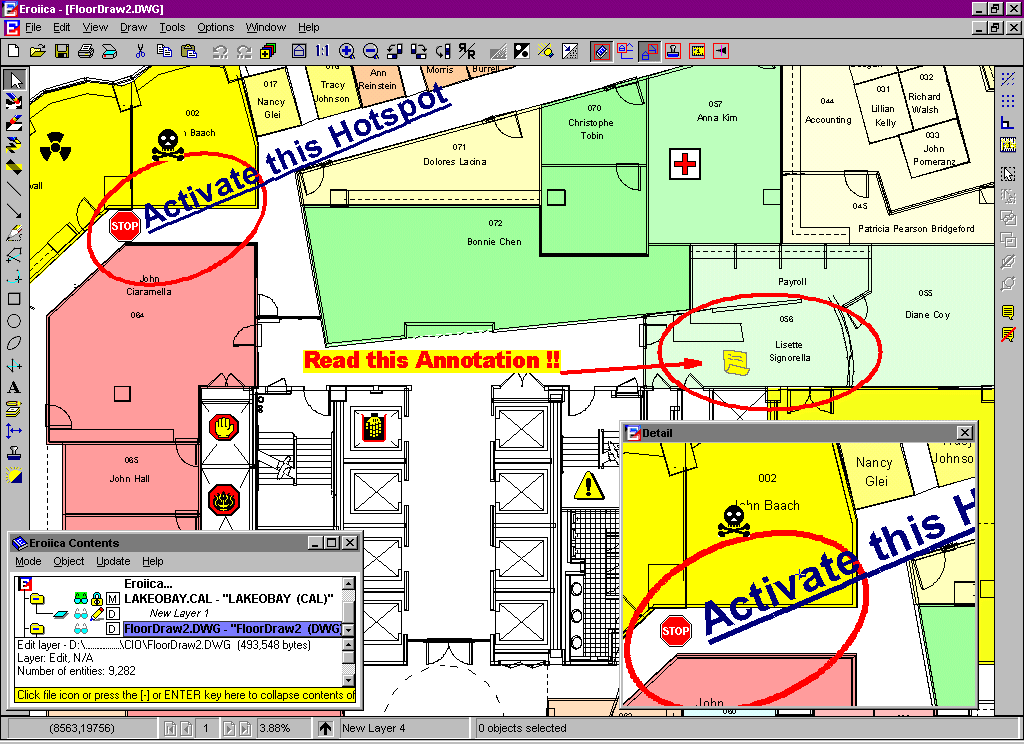

Stand-alone or integrated with EDM/PDM/ERP/Workflow/etc. via its rich API, Eroiica Lite facilitates fast and accurate viewing, printing and conversion of hundreds of engineering size CAD/CAM/CAE document formats - 2/3D vector, raster, text or hybrid formats. Eroiica is suitable for visualization solutions in the A/E/C, Engineering, Manufacturing and Electronics markets with requirements to support hundreds of CAD & raster formats outside of the "often expensive" native applications such as AutoCAD, Microstation, etc.Features:(a)View 3D CAD documents including extrusions, external references, viewports, etc;(b)View ACIS models, body objects, solids, regions etc. stored in AutoCAD DWG drawings;(c)View ACIS models, body objects, solids, regions etc. stored in SAT files;(d)View Paper Space and/or Model Space in AutoCAD drawings;(e)Display Eroiica Measurement window and measure distances and objects using imperial, metric, custom, or Windows default units;(f)Set width and color for 255 HPGL pens;(g)Open documents regardless of their file extension (Auto-format sensing);(h)Grayscale documents for better readability;(i)Mix page formats and sizes within a document;(j)Enhance document readability with sampling, mirroring, gray scaling, inverting and many other options;(k)Use Eroiica Contents window to manage layers: turn them on or off, delete, show, hide, print, add new or access existing layers in CAD documents;(l)Preserve layer information from CAD files such as AutoCAD and Microstation;(m)Selectively show, hide and alter the color of CAD layers using the Eroiica Contents window;(n)Use sophisticated color palette management for exceptional display and print results in advanced color operations;(o)Navigate easily through any document: pan, zoom, rotate and scroll. Display multiple views of a document. Take a closer look in Eroiica s Detail window and see the big picture in the Reference window;
